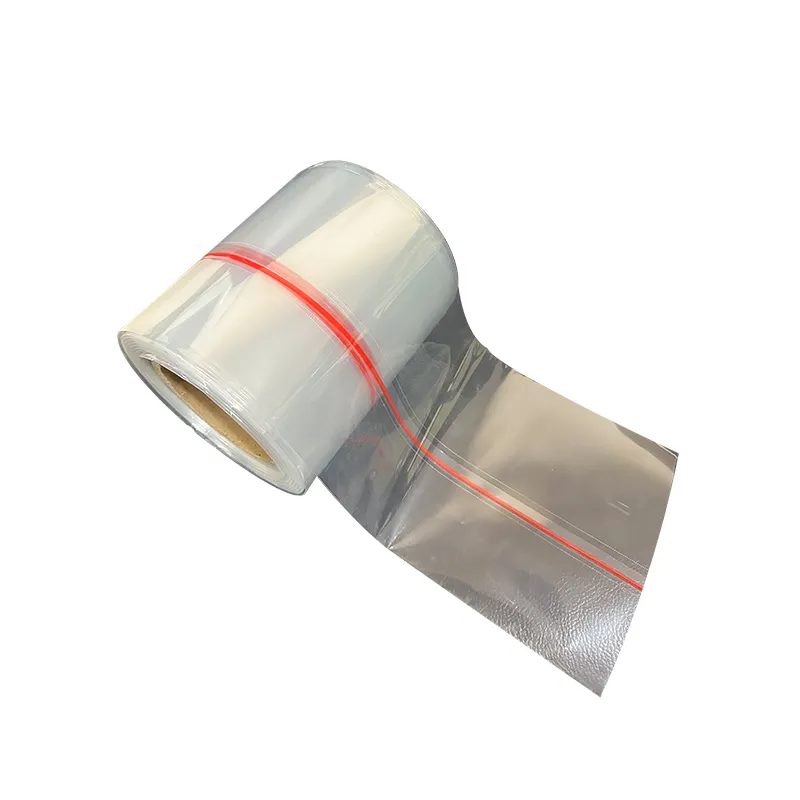

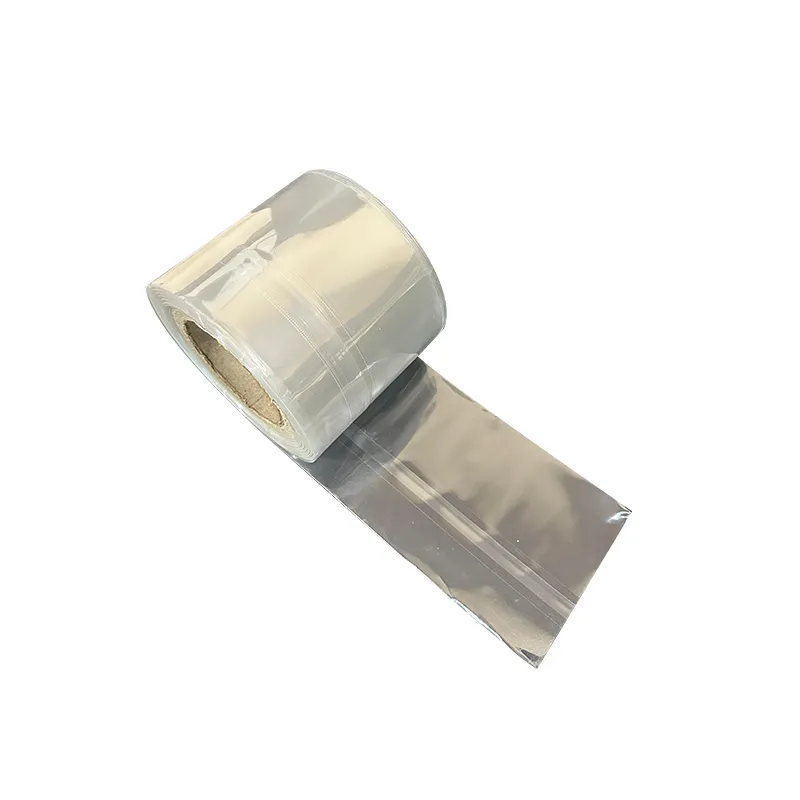

Our PETG Shrink tubing film roll are made from PETG shrink film. Super Transparent, High Strength, High Shrinkage. Compare with traditional clear shrink tubing, PETG Shrink film is 100% recyclable, more environmentally friendly than many other films. Polyolefin Shrink Film Roll is a great packing solution for cables, candle, bottle cap, thread, cans, wires and many other products.

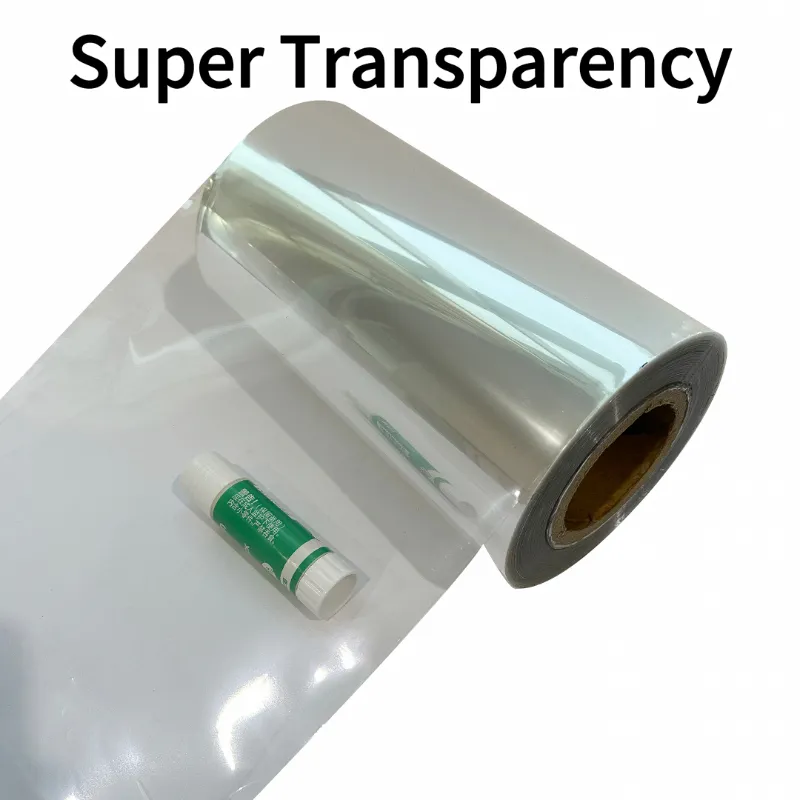

- Super Clear
- Stable Shrink
- 100% Recyclable
- High TD Shrinkage & No MD Shrinkage
Proceso de dar un título:
Applications

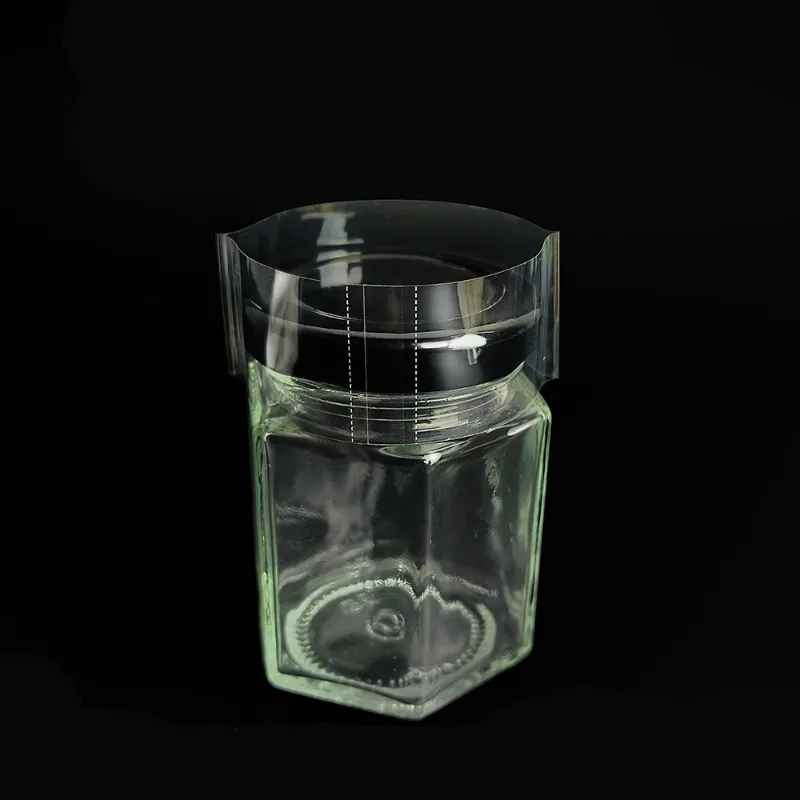

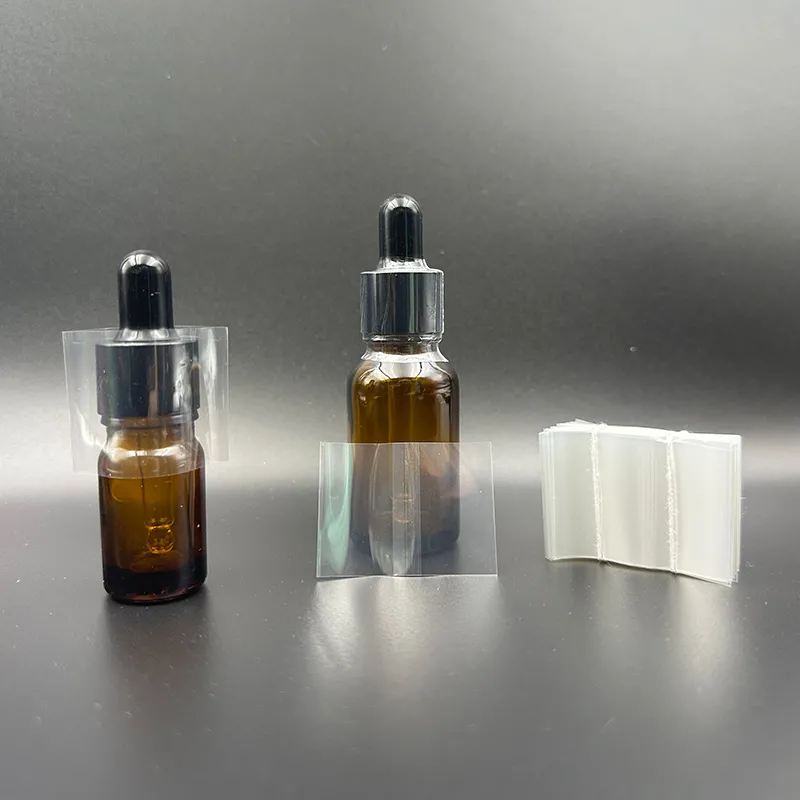

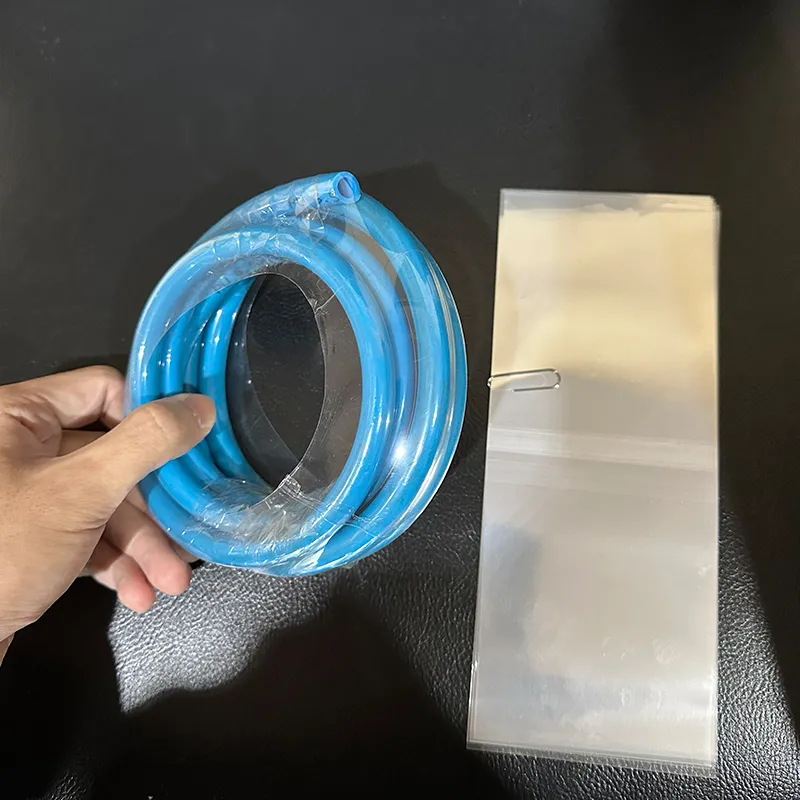

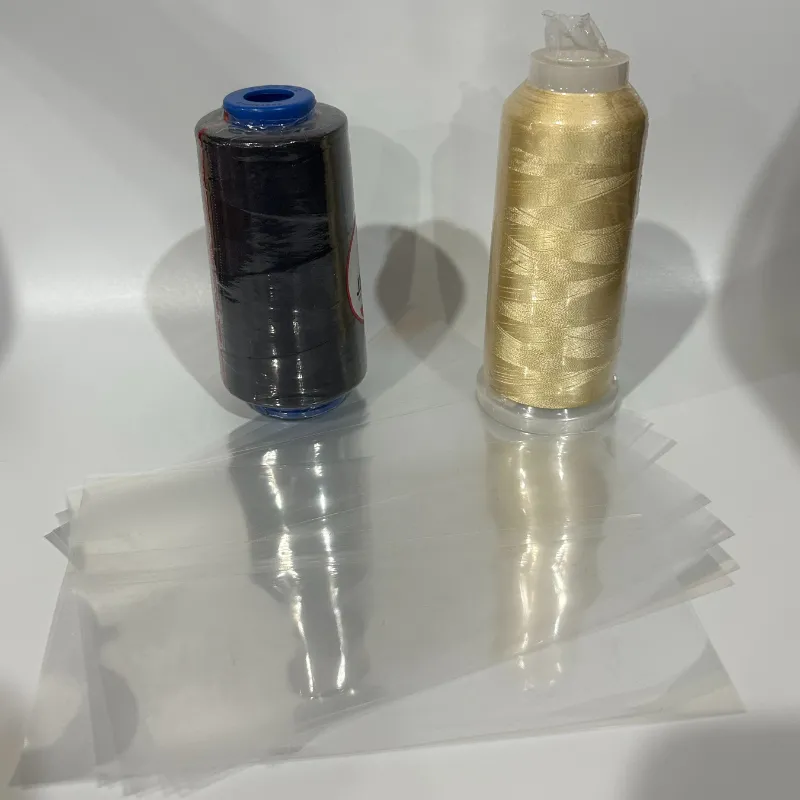

Mylar Film Roll Shrinkble is widely used in packaging cables, candle, bottle cap, thread, cans, wires and many other products. Protect the product from dust, water, and scratches.
Data Sheet
| Property | Unit | Value | Test Method | |||
| SH650 | SH750 | SH800 | ||||
| Thickness | μm | 40.0 | 40.0 | 40.0 | ASTM D 374 | |
| Density | g/cm³ | 1.32 | 1.32 | 1.32 | ASTM D 1505 | |
| Tensile Strength | MD | Mpa | ≥40 | ≥40 | ≥40 | ASTM D 882 |
| TD | Mpa | ≥120 | ≥120 | ≥120 | ||
| Elongation at break | MD | % | ≥250 | ≥250 | ≥250 | |
| TD | % | ≥30 | ≥30 | ≥30 | ||
| Heat Shrinkage | MD | % | ≤3.0 | ≤3.0 | ≤3.0 | 95℃ 10 Sec, Water Bath |
| TD | % | ≥65 | ≥75 | ≥80 | ||
| Friction Coefficient | μs | ≤0.60 | ≤0.60 | ≤0.60 | ASTM D 1894 | |
| μk | 0.55 | ≤0.55 | ≤0.55 | |||
| Haze | % | ≤7.0 | ≤7.0 | ≤7.0 | ASTM D 1003 | |
| Transmittance | % | ≥90 | ≥90 | ≥90 | ASTM D 1746 | |
| Gloss (45°) | % | ≥110 | ≥110 | ≥110 | ASTM D 2457 | |
| Surface Tension | mN/m | ≥38 | ≥38 | ≥38 | ASTM D 2578 | |

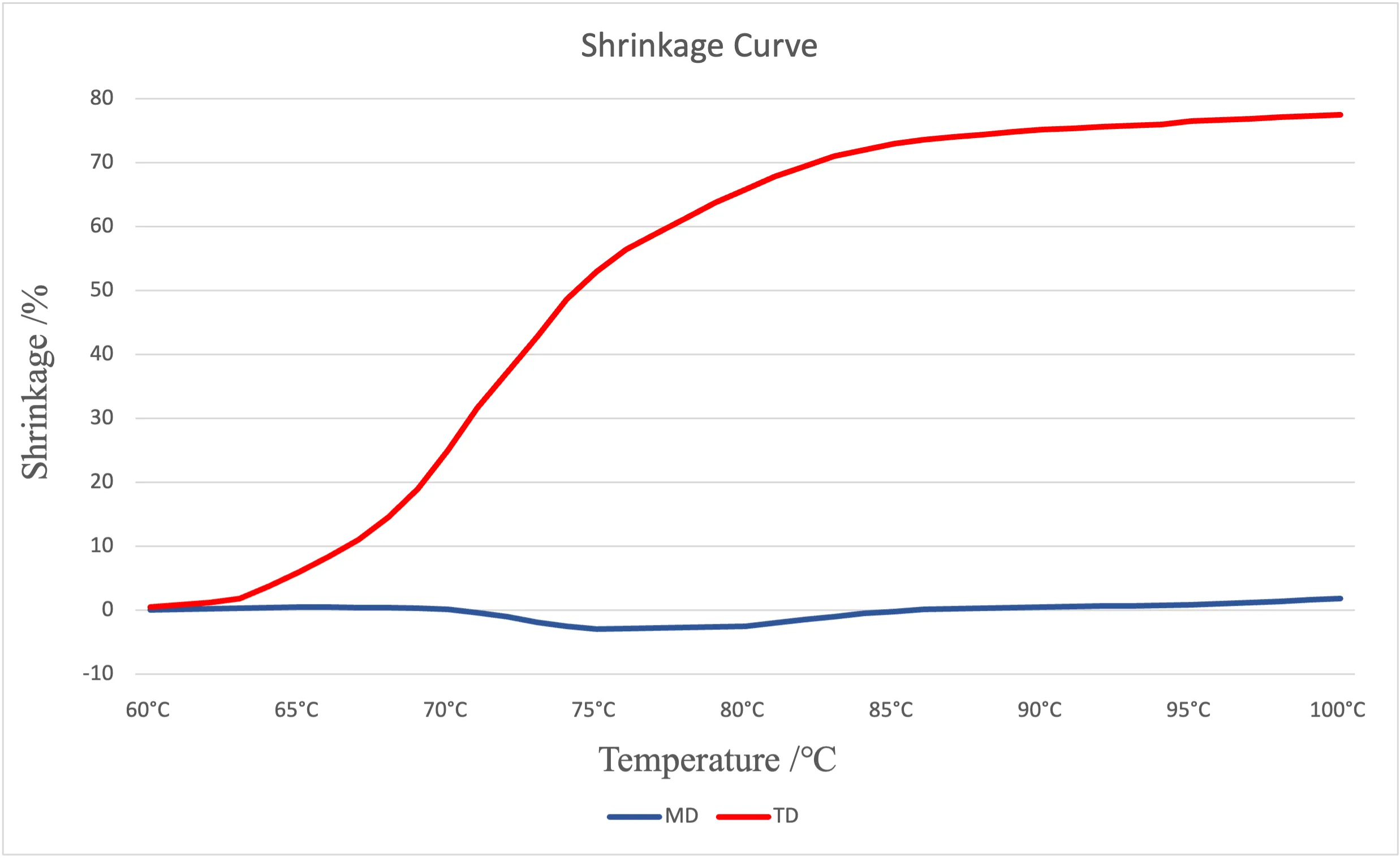

PETG Shrink Film Shrink Curve
Product Specification
We accept custom order.
Thickness:
20micron – 70micron
Width:
200mm – 500mm
Length:
5000m – 2000m
Shrinkage:
TD: 60% - 80% MD: 0% - 3%
Preguntas y Respuestas
How to Shrink?
Use in steam, hot air, or infrared shrink tunnel.
Can I ask for samples of clear PETG shrink tubing roll?
Yes, depends on your needs, some pieces, 20m length, 100m length of sample can be provided.
How JFPolyFilm package and deliver the films?

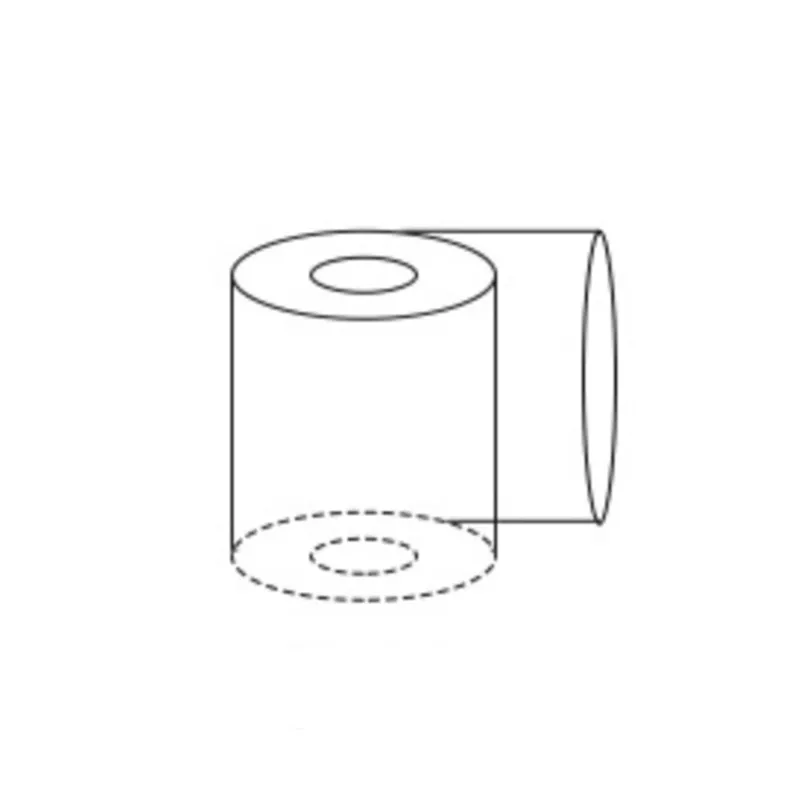

3" Paper Core (Customer can choose 7"), Rolling Packing, Put in Paper Box, Cover with Heat Barrier.
Is clear PETG shrink tubing roll environmentally friendly?
Yes, it’s 100% recyclable, and much more environmentally friendly than PVC.
How should clear PETG shrink tubing roll stored?
Stored in temperatures below 30℃ (86°F)
Avoid direct sunlight, moisture and dust.
